FastCharger 60kW-240kW
with 20kW Increments
Level 3 Electric Vehicle Charger

FastCharger 240kW

Flexible Charging Port Options

Available with 2x CCS, or 1x CCS and 1x CHAdeMO connector.

Safe & Reliable

Certified to UL and CSA standards, NEMA 3R Rated for Outdoor Application, with Standard 2-Year Warranty.

27-Inch Touchscreen Display & LED Indicator

Display Charging Statistics, Such As: SOC, Cost, kWh.

Easy to Install & Service

Once placed into position, Charger Maintenance can be performed by just one Qualified Person.

Smart Cloud Portal & OCPP Capability

Enable Site Hosts to Control the Charger and Collect Revenue.

Manage Any OCPP Compatible

Chargers Using Our Cloud Portal.

Remote Update & Diagnostics

Supported by ChargeFast. Charge Cloud + App SaaS system, Reduce Operational Costs.

Plug & Charge Capable

Supports ISO 15118 Standard.

Dynamic Load Balancing

Balance the Load to Better Adapt to Your Infrastructure.

Key Functions & Features


Rapid Charging

Up to 240kW of Power

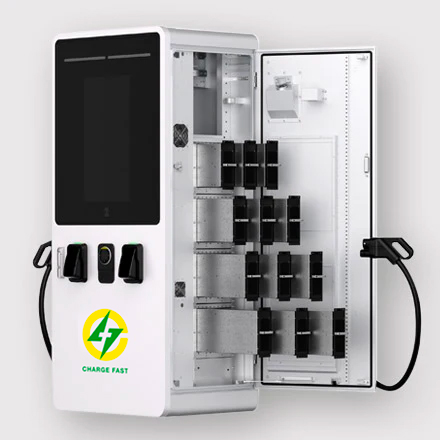

Modular Power

Flexible, Upgradable, and Expandable


27-Inch Screen

Promotional Advertising or Informational Display


High Quality

Reliable, Weatherproof, Robust

The Most Flexible DC Fast Chargers


Expandable Power

Modular 20kW Increments

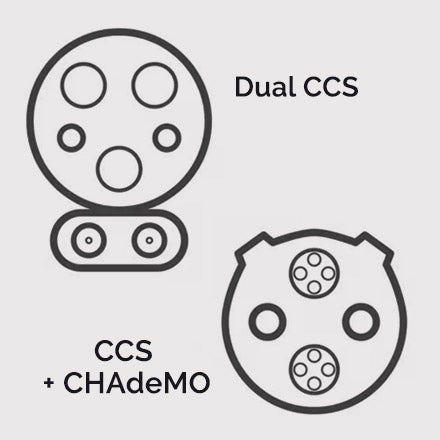

Multiple Connectors

Dual CCS or CCS + CHAdeMO


Multiple Cables

CCS1 or CCS1 Boost

Features and Benefits


Up to 240kW of DC charging power. Replenish up to 62 miles of range after only 5 minutes of charging. 400 amp boost cable available for industry leading charging speeds.

27-inch Advertising Screen

Custom branding and revenue generating options available through our 27-inch advertising screen.


Charging safety ensured by multiple technologies including Type A RCD, insulation detection and continuous monitoring.

Dynamic Load Balancing (DLB)

Intelligent charging management to prevent over-current. Number of vehicles charged at the same time can be increased to boost revenue.


Chargers can be customized according to customer needs with 60-240kW power configuration range, 15ft, 20ft, 25ft cable lengths, 15.6-Inch or 27- inch LCD touch screen, different logo and color options, etc.

Rugged & Reliable

Our innovative housing design with industry leading component protection enables reliable operation in the harshest environments. MaxiCharger DC Fast products come with a standard 2 year warranty which can be extended up to 5 years.

Intelligent Detection

Assess battery SOH and achieve battery safety pre-warning via analysis of real-time data from charger + cloud + vehicle.

High Adaptability

Integrated with OCPP (Open Charge Point Protocol). With CHAdeMO and CCS connectors.

One-Stop Service

Pre-sales consultation, after-sales support, and 24/7 support teams.

Low Noise

Operating volume below 65dB. With low noise and high power.

Remote Management

The FastCharger app and FastCharger Cloud, enable worry-free ownership with remote management, updates and fault detection alerts.

Convenient Design

Modular power module and available update slots enable easy on-site installation and convenient maintenance.

Multiple Payment Methods

Payment via app, RFID card, POS machine.

Technical Specifications

Part Numbers

DCFC 60kW-120kW:
60kW: UF060xxxxx: 80kW: UF080xxxxx
100kW: UF100xxxxx: 120kW: UF120xxxxx
DCFC 140kW-240kW:
140kW: UF140xxxxx: 160kW: UF160xxxxx
180kW: UF180xxxxx: 200kW: UF200xxxxx
220kW: UF220xxxxx: 240kW: UF240xxxxx

The "xxxxx" portion of the product part number represents the various product configurations.


Connector Option*
DCFC 60kW-120kW:
60kW: UF060xxxxx; 80kW: UF080xxxxx;
DCFC 140KW-240KW:
Dual CCS1/CCS1 Boost, or CCS1 + CHAdeMO
Max. Input AC Current
DCFC 60kW-120kW:
60kW: 91A; 80kW: 122A;
100kW: 152A; 120kW: 182A
DCFC 140KW-240KW:
140kW: 213A; 160kW: 245A; 180kW: 270A;
200kW: 305A; 220kW: 335A; 240kW: 365A
Nominal Input AC Current
DCFC 60kW-120kW:
60kW: 83A; 80kW: 110A;
100kW: 138A; 120kW: 165A
DCFC 140KW-240KW:
140kW: 181A; 160kW: 207A; 180kW: 230A;
200kW: 260A; 220kW: 285A; 240kW: 310A
Input Voltage Range
480 V AC - 15 % to +10 % @ 60 Hz
DC Output Voltage
CCS1: 150 to 950 V DC; CHAdeMO: 150 to 500 V DC
Network Type
TN-S, TN-C, TN-C-S, & TT (External RCD** Required)
AC Input Connection
3P + PE (No Neutral)
Over-Current, Over-Voltage, Under-Voltage, Ground-Fault, Over-Temperature, Short-Circuit, Insulation Monitor (IMD), & Surge Protection
Overvoltage Category
AC Side (Input) OVC: III
Power Factor (>50% Load)
≥ 0.98
THDI (>50% Load)
≤ 5 %
Peak Efficiency
≥ 96 %
Standby Power
80 W
Short Circuit Current Rating
≥ 65 kA
Energy Metering
Class A

User Interface & Communication

Internet Access Via 4G / Wi-Fi / Ethernet (RJ 45)
User Authentication
QR Code, RFID, Credit Card (Optional)
ISO 15118 Plug & Charge
DIN 70121
27” LCD High-Contrast Touchscreen (15.6” Optional)
Accessible For Wheelchair Users
Communications Protocols
OCPP 1.6 JSON, OCPP 2.0.1 (Can Be Upgraded Later)
RFID Reader
ISO 14443 A+B to Part 4 & ISO/IEC 15693, Mifare, NFC, Calypso, Ultralight, PayPass, HID & More
Emergency Button
Software Update
OTA Update Via Web Portal
Control And Configuration
Web Portal, On-Board Service Portal

General Characteristics

Protection Ratings
NEMA 3R Outdoor Use & IK-10
Enclosure Type
Stainless Steel 430
Operation Altitude
6561 Ft. (6561 to 9843 Ft. with Power Derating)
Operation Temperature
-31 °F to +131 °F (+122 °F to +131 °F with Linear Power Derating)
Storage Temperature
-40 °F to +158 °F
Noise Level
< 65 dB @1 m/25 °/Full Load/800 VDC
Free-Standing Cabinet

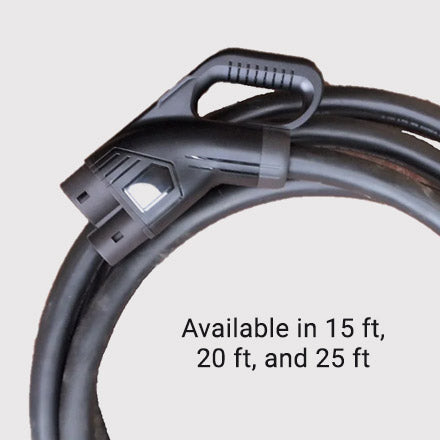

Cable Length
15 ft (Optional: 20 or 25 ft)
Dimentions (H X W X D)
DCFC 60KW-120KW:
76.8" x 32.3" x 23.6" (1950 x 820 x 600mm)
DCFC 140KW-240KW:
76.8"x 32.3"x 27.6" (1950 x 820 x 700 mm)

Certification and Standards

Safety and Compliance
UL 2202, UL 2231-1, UL 2231-2, NEC Article 625, CSA C22.2 No. 107.1-16
EMC compliance
FCC Part 15 Class A, Class B (Optional)
24 months, warranty extension possible

* CCS1 Max 200A, CCS1 Boost 300A (Max 400A) ** RCD: Residual Current Detector For Ground Fault Protection
